In the modern sheet metal fabrication industry, production efficiency and process flexibility have become key factors in determining a company’s competitiveness. With the growing trend toward high-mix, low-volume production, traditional full-length press brake tooling has gradually revealed its limitations, such as complicated adjustments and time-consuming tool changes. Against this backdrop, segmented press brake tooling has gained increasing popularity in recent years.

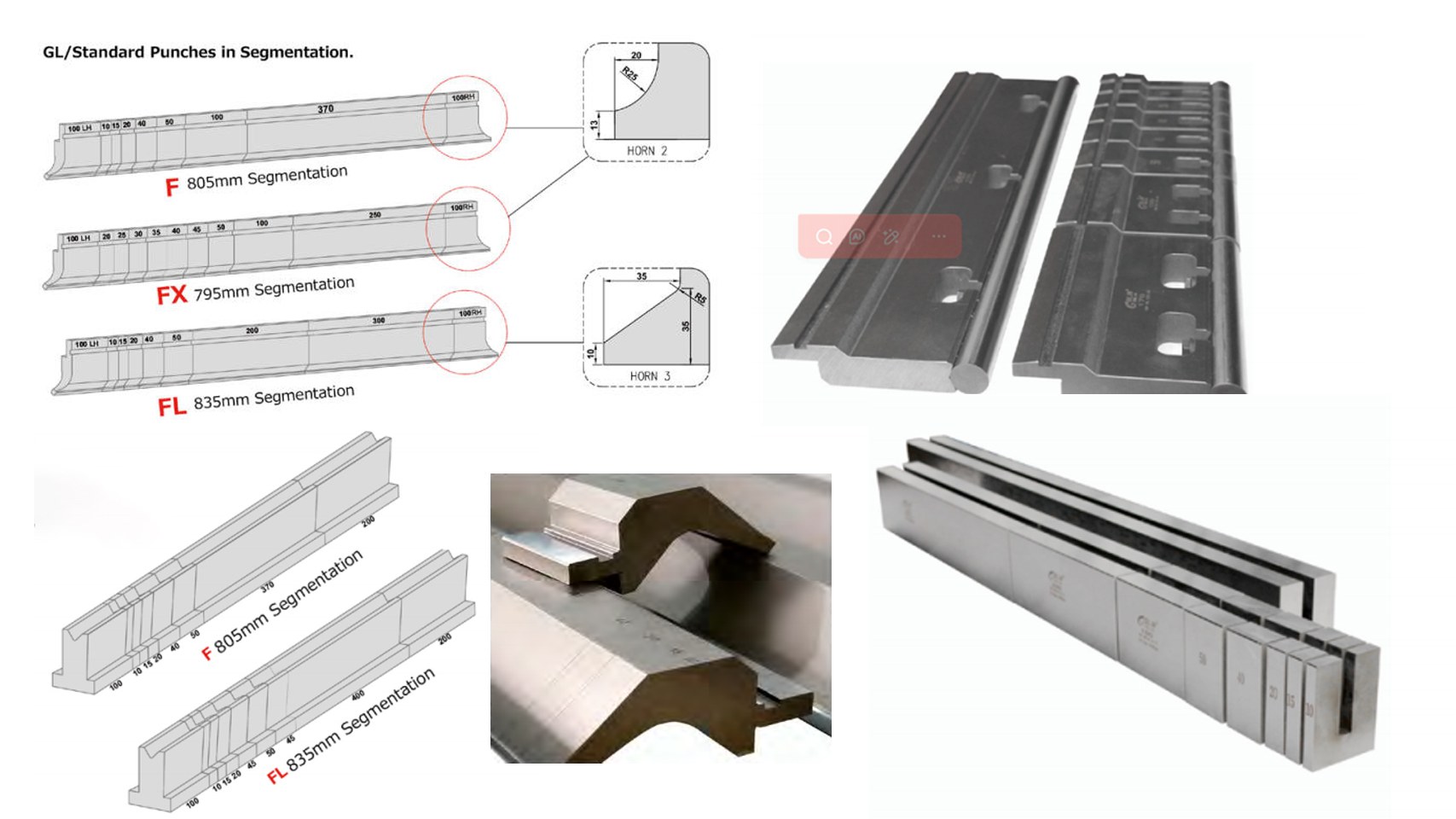

Unlike conventional one-piece tooling, segmented tooling consists of multiple standardized sections that can be freely combined and flexibly adjusted according to actual bending requirements. In addition, since each segment is smaller and lighter, handling becomes much easier. Operators can quickly respond to different bending lengths, shapes, and process requirements without replacing the entire tool, significantly reducing setup time and greatly improving machine utilization and production flexibility.

In terms of cost, segmented tooling also offers clear advantages. Instead of purchasing multiple full-length tools for different applications, manufacturers can achieve various configurations with a single segmented tooling set, significantly lowering procurement costs. At the same time, the smaller size of segmented tooling helps save storage space and makes tool management more convenient.

So in which working conditions is it more recommended to use segmented press brake tooling?

In production environments with high-mix, low-volume manufacturing, product types change frequently. Traditional full-length tooling requires complete removal and replacement every time, which is time-consuming and inefficient, significantly limiting the actual productivity of the machine.

In contrast, segmented tooling allows operators to partially combine or adjust individual sections according to the current task without replacing the entire tool set. This greatly reduces setup time and significantly improves machine utilization and production responsiveness.

Complex parts prone to interference during bending

In real-world applications, many complex sheet metal parts include flanges, ribs, or irregular geometries. When using full-length tooling, interference is likely to occur, which may lead to forming failure or damage to the workpiece.

With segmented tooling, operators can create clearance gaps by flexibly arranging the segments, effectively avoiding interference and enabling smooth forming of complex structures.

High tooling cost and limited storage space

Traditional methods require multiple sets of full-length tools for different applications, resulting in high procurement costs and heavy inventory pressure.

Segmented tooling, however, can achieve multiple combinations with a single set, significantly reducing tooling investment. At the same time, its compact size saves storage space and makes tool management much easier and more organized.

Long prototyping cycles and low adjustment efficiency

During product development or trial production, dimensions and structures are often continuously optimized and adjusted. If full-length tooling is used, every modification not only increases cost but also significantly extends production time.

Segmented tooling supports fast reconfiguration and adjustment, allowing flexible adaptation to design changes and greatly improving development efficiency during the prototyping stage.

The core value of segmented press brake tooling lies in providing a more flexible, efficient, and cost-effective solution to real production challenges. In recent years, Golin has continuously innovated and improved its product structure and manufacturing processes, further enhancing the precision, durability, and compatibility of segmented tooling, enabling it to better serve various types of sheet metal fabrication customers around the world.
